Outer Window Recess Seal

Outer Window Recess Seal

Removing

• The seal has a metal insert in the center. If it gets bent, it will not possible to straighten it out again. It will remain "wavey".

• This why the seal must be removed evenly without bending it.

• The following describes removing and installing the right outer window shaft. Removing and installing the left outer window shaft is identical.

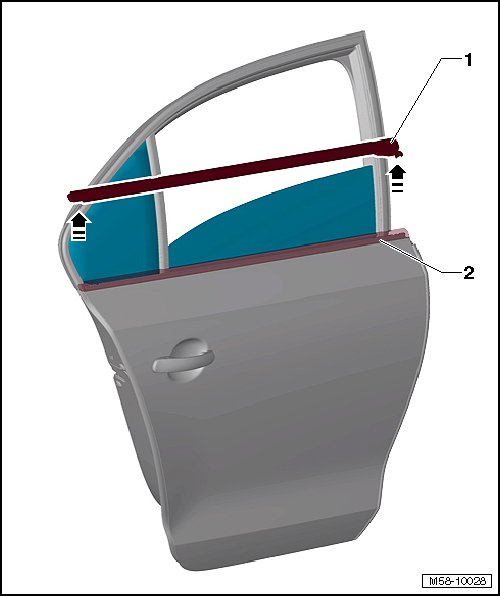

- Remove the seal - 1 - evenly - arrows - from the flange - 2 -.

Installing






- Position the seal - 1 - on the B-pillar and push it evenly onto the door flange - 2 -.
