Outer Door Seal

Outer Door Seal

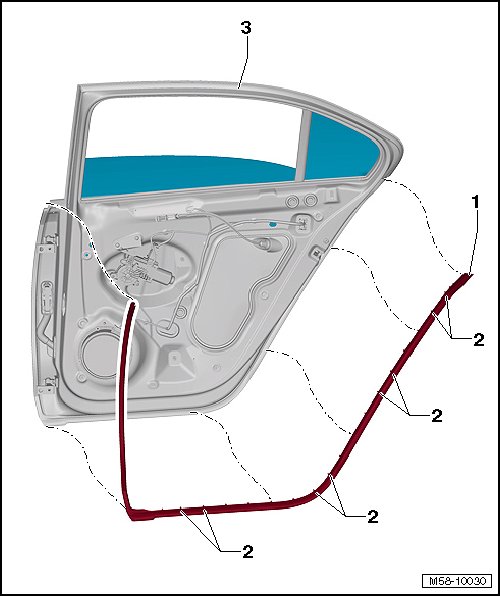

• The following describes removing and installing the right outer door seal. Removing and installing the left outer door seal is identical.

• Check the clips - 2 - for damage and replace them if necessary.

Removing






- Remove the outer door seal - 1 - and clips - 2 - from the door- 3 -.

Installing






• Replace any damaged clips - 2 -.

- Press the outer door seal - 1 - onto the door - 3 - first at the B-pillar.

- Press the rest of the outer door seal - 1 - and clips - 2 - onto the door - 3 -.
