Inner Window Shaft Seal

Inner Window Shaft Seal

• The following describes removing and installing the right inner window shaft seal. Removing and installing the left inner window shaft seal is identical.

• Pull the strip off evenly without bending it.

Removing






- Remove the trim panel from the rear door.

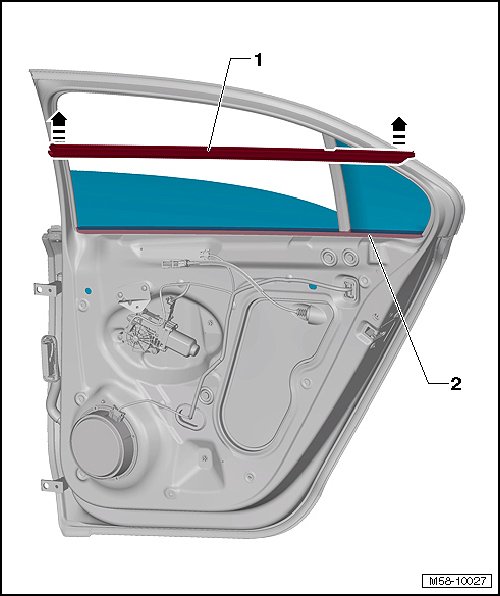

- Remove the seal - 1 - evenly - arrows - from the flange - 2 -.

Installing






- Press the seal - 1 - onto the flange - 2 - evenly starting at the B-pillar.

- Install the trim panel on the rear door.
