Inner Door Seal

Inner Door Seal

The inner door seals are equipped at the factory with sealant, applied to the door flange and then rolled on.

• The sealant on the inside will be distributed when the seal is removed. The edges will slightly get bent upward when doing this. If the seal is being installed again, the sealing performance and proper seating are no longer guaranteed.

• For this reason, every seal, that has been removed completely, must be replaced with a "hammer-stroke seal".

• With partially removed seals, press the edges of the seal together before installing.

• The following describes removing and installing the right inner door seal. Removing and installing the left inner door seal is identical.

Removing






- It is necessary to remove the pillar trim in order to remove the inner door seal.

- Remove the sill panel strip.

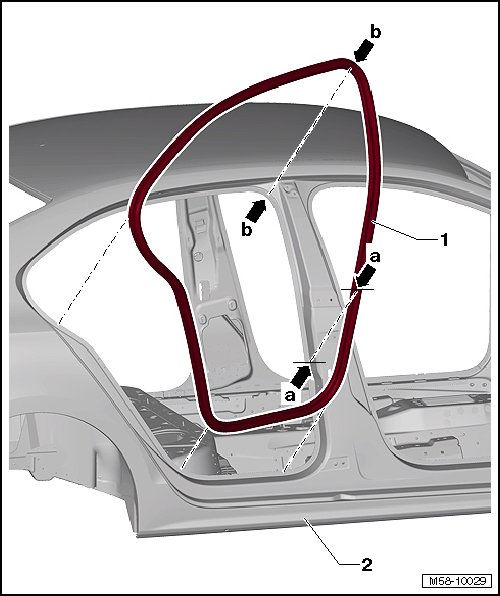

- Remove the inner door seal - 1 - from the flange - 2 -.

Installing






- Line up the inner door seal - 1 - with the vulcanized point - arrow a - with the lower hinge - arrow a -.

- Install the inner door seal - 1 - starting at the top of the door opening - arrow b -.

- Install the sill panel strip.

- Install the pillar trim.
