Noise Insulation Assembly Overview

Noise Insulation Assembly Overview

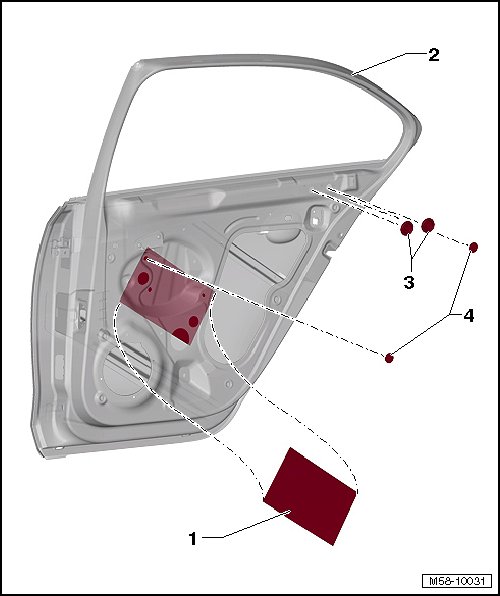

1 Noise insulation

• Self-adhesive

• Installing:

- Cut to size if necessary

- Heat using a hot air gun (V.A.G 1416) and press onto the outer door panel.

2 Door

3 Sticker

• 40 mm diameter

• Use electrical tape if needed

4 Sticker

• 20 mm diameter

• Use electrical tape if needed
