Driver Seat Lumbar Support Adjustment Switch -E176-

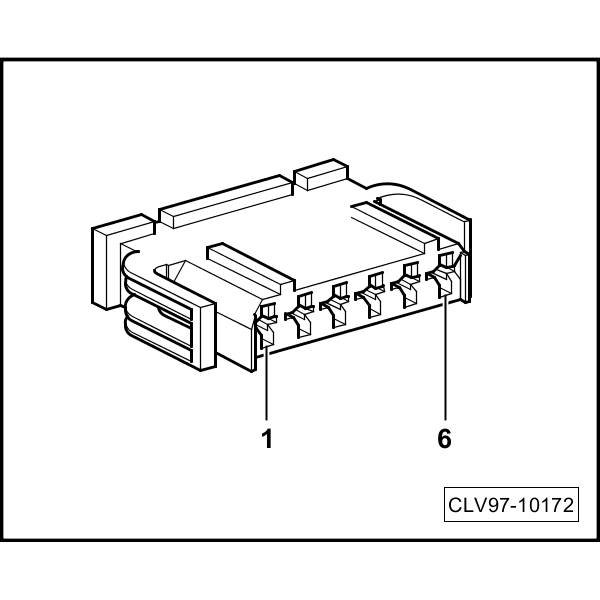

Comfort System - Connector Views

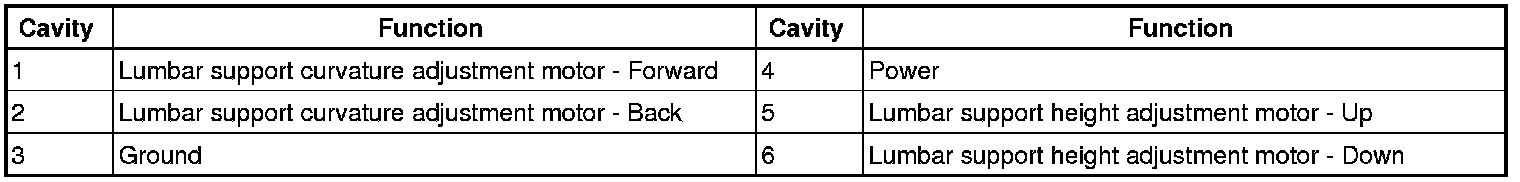

Driver seat lumbar support adjustment switch -E176-
