Power Seat Bracket

Power Seat Bracket

• The following describes removing and installing the left seat. Removing and installing the right seat is identical.

Removing

- Turn off the ignition.

- Remove the left trim on the seat with power height adjustment. Refer to => [ Left Seat Trim with Power Height Adjustment ] Left Seat Trim with Power Height Adjustment.

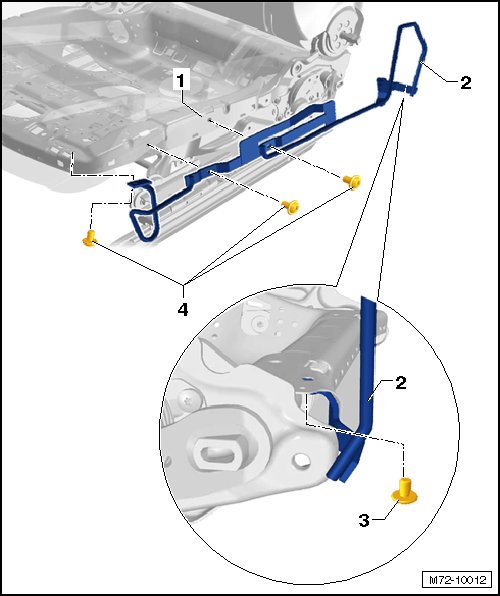

- Remove the bolt - 3 - (7,5 Nm).

- Remove the screws - 4 - (7.5 Nm) and the bracket - 2 - from the seat frame - 1 -.






Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
