Lumbar Adjustment Lever

Lumbar Adjustment Lever

Removing

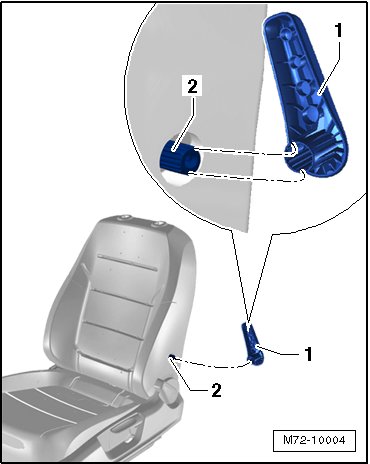

- Remove the lumbar adjustment lever - 1 - from the shaft - 2 - with (3392).






Installation

- Install in reverse order of removal.






• Make sure the splines on the lumbar adjustment lever - 1 - align with the splines on the shaft - 2 -.
