Fire Extinguisher Mount on Seat Frame

Fire Extinguisher Mount on Seat Frame

Removing

- Remove the cover and the cushion from the front seat. Refer to => [ Front Seat Cushion, Cover and Upholstery ] Front Seat Cushion, Cover and Upholstery.

- Remove the fire extinguisher.

- Remove the fire extinguisher bracket. Refer to => [ Fire Extinguisher Mount ] Fire Extinguisher Mount.

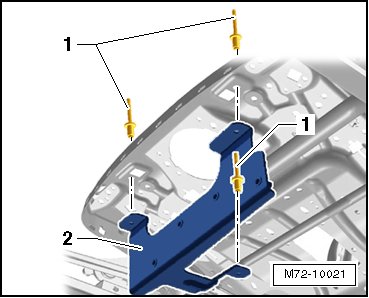

- Drill open the blind rivets - 1 -.

- Remove the fire extinguisher bracket - 2 - from the lower seat frame.






Installation

- Mount the bracket - 2 - on the seat frame.

- Install the new blind rivets - 1 - using (VAS 5072).






- Further assembling is in reverse order of removal.
