Automatic Rotary Switch for Sliding/Tilting Sunroof

Automatic Rotary Switch for Sliding/Tilting Sunroof

Removing

- Remove the front interior lamp (W1).

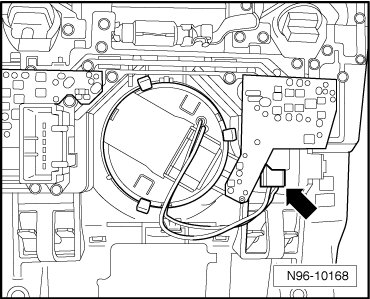

- Disconnect the connector - arrow -.

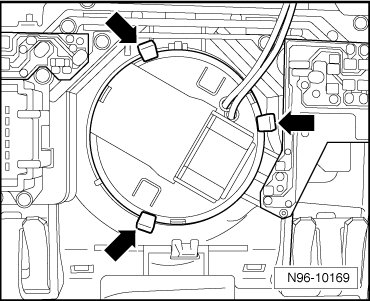

- Open the tabs - arrows - and remove the controls for the sunroof.






Installing

Install in reverse order of removal.
