Water Drain Hoses, Cleaning

Water Drain Hoses, Cleaning

• For cleaning, it is recommended that you create your own assisting tool that resembles a speedometer inner cable in size and flexibility and is approximately 8 feet (2300 mm) in length or an equivalent tool.

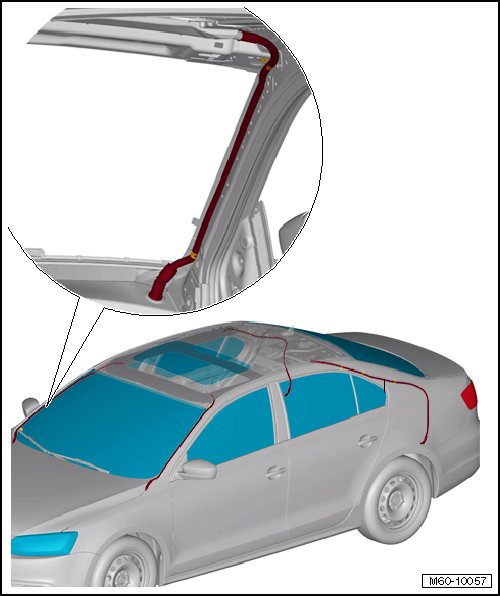

Front Water Drain Hoses






The front water drain hoses run through the A-pillars and end at the bulkhead crossmember. Cleaning is performed at cut out for sunroof.

Rear Water Drain Hoses






The rear water drain hoses run through the C-pillars and end in the rear wheel housings. Cleaning is performed in the wheel housing, but the wheel housing liner must be removed. Refer to => [ Front Wheel Housing Liner ] Front Wheel Housing Liner.
