Pressure Hoses

Pressure Hoses

Removing

- Open the clamp - 1 - in - direction of arrow a -.






- Remove the pressure hose - 2 - from the coupling - 3 - in - direction of arrow b -.

Installing

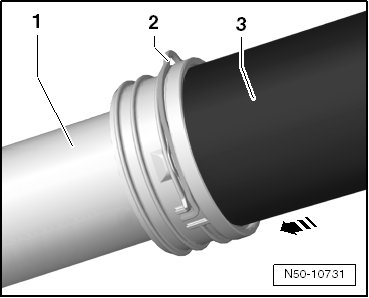

• Make sure the clip - 2 - is in the upper position.






- Attach the pressure hose - 3 - into the coupling - 1 - in - direction of arrow -.

- Push the clip - 2 - all the way down.

• If the clip cannot be pushed all the way through, this means the pressure hose is not completely attached to the coupling.

• Install the pressure hose again and lock the clip.

• Pull the coupling to make sure it is secure.

Pressure Hose with Threaded Connection and Clamp

Removing

- Loosen the screw on the clamp - A -.






- Remove the pressure hose and the clamp - A - from the threaded connection.

Installing

- Push the pressure hose and the clamp - A - all the way onto the threaded connection.






- Tighten the screw on the clamp - A -.


The screw on the clamp - A - must be tightened to the exact tightening specification => [ Clamp Tightening Specification ]. The pressure hose could slip off the threaded connection while the vehicle is being driven if the screw is too loose or it was overtightened.

Clamp Tightening Specification





1. Clamp - a - = 13 mm wide: 5.5 Nm

2. Clamp - b - = 9 mm wide: 3 Nm
