Power Mirror Motor: Service and Repair

Adjusting Unit with Exterior Rearview Mirror Motor

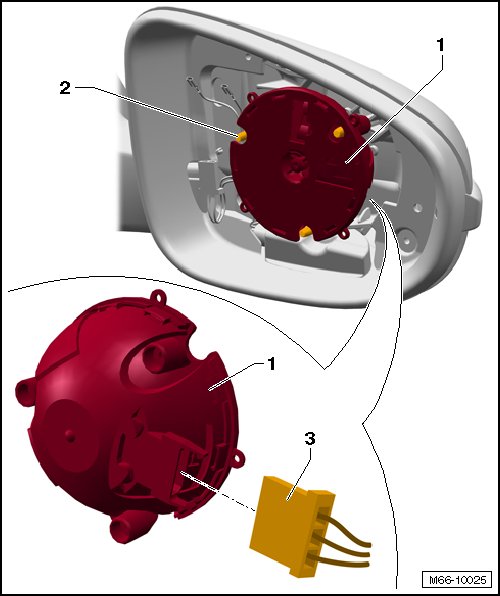

• The following describes removing and installing the right adjusting unit and motor. Removing and installing left adjusting unit and motor is identical.

Removing






- Remove the mirror glass. Refer to => [ Mirror Glass ] Mirror Glass.

- Remove the bolts - 2 - (quantity: 3) and remove the adjuster unit and motor - 1 - from the mirror base.

- Move the adjuster unit - 1 - to the side and disconnect the connector - 3 -.

Installing






- Connect the connector - 3 - to the adjuster unit - 1 -.

- Mount the adjuster unit - 1 - on the mirror base and tighten the screws - 2 - (quantity: 3).

Bolt - 2 - tightening specification: 2 Nm

- Install the mirror glass. Refer to => [ Mirror Glass ] Mirror Glass.

• Perform function test.
