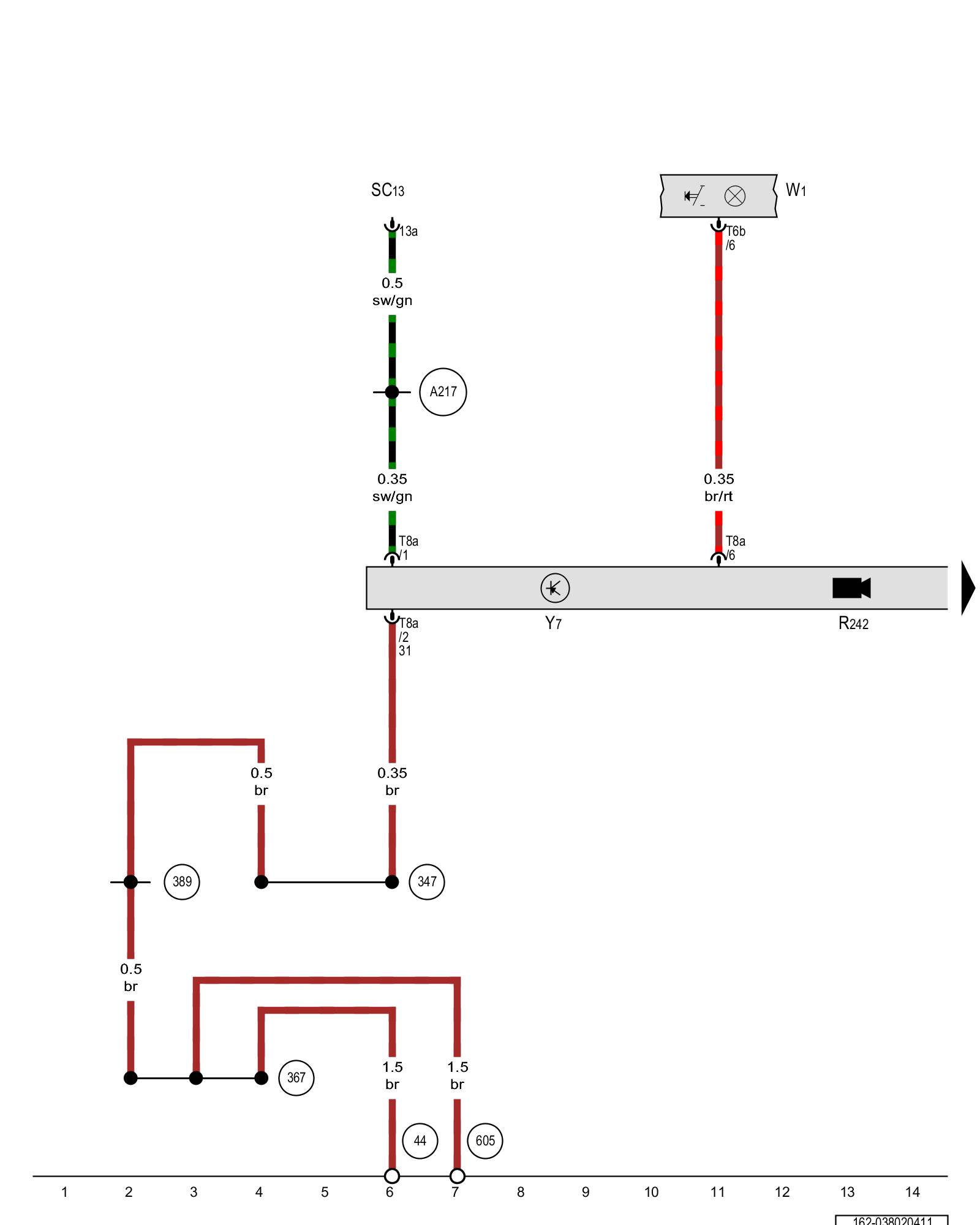

Diagram 38/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse 13 (on fuse panel C), Front interior lamp, Automatic dimming interior rearview mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R242 - Driver assistance systems front camera

SC13 - Fuse 13 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T6b - 6-pin connector

T8a - 8-pin connector

W1 - Front interior lamp

Y7 - Automatic dimming interior rearview mirror [1][2]Connector Views

(44) - Ground connection on A-pillar, lower left Locations

(347) - Ground connection (in roof wiring harness)

(367) - Ground connection 2 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(605) - Ground connection on upper steering column Locations

(A217) - Positive connection 8 (15a) (in instrument panel wiring harness)
