Driver Door Lock Unit -F2- / -F220- / -V56-

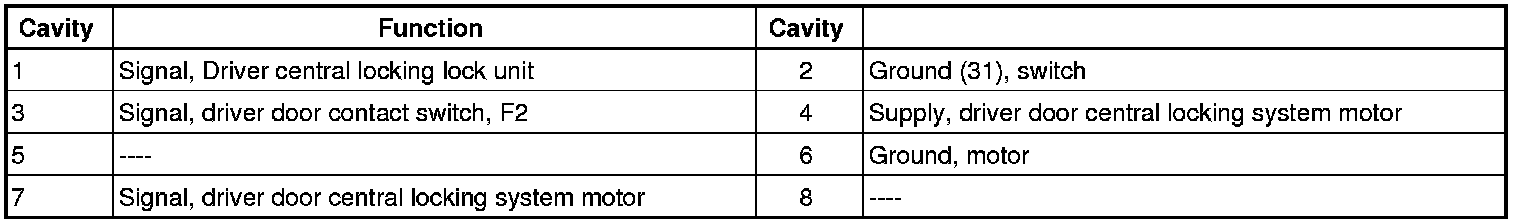

Door Control Units - Connector Views

Driver door lock unit -F2- / -F220- / -V56-



Driver door contact switch/Driver central locking
lock unit/Driver door central locking system motor
