Keyless Start Control Module: Service and Repair

Access/Start Authorization Control Module (J518)


• Turn off the ignition and all electrical consumers.

• Remove the key.

The access/start authorization system must be coded after the access/start authorization control module has been replaced. Refer to => [ Access/Start Authorization Control Module (J518), Coding ] Access/Start Authorization Control Module (J518), Coding.

Removing

- Remove the driver side footwell vent.

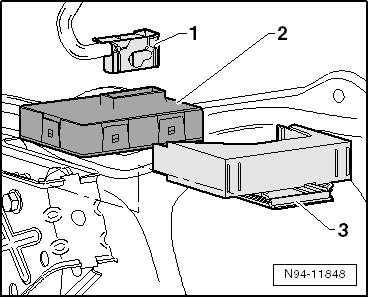

- Open the retainers - arrow - and remove the access/start authorization control module - 2 - together with the mount - 3 - from the brake pedal bracket. Pay attention to the wires still connected.

- Disconnect the connector - 1 - and remove the access/start authorization control module - 2 - from its mount - 3 -.

Installing

Install in reverse order of removal, noting the following:






- Install the access/start authorization control module - 2 - in its mount - 3 -.

- Slide the mount - 3 -, together with the access/start authorization control module, onto the guides on the brake pedal until it latches secure.

- Connect the connector - 1 -.

The access/start authorization system must be coded after the access/start authorization control module has been replaced. Refer to => [ Access/Start Authorization Control Module (J518), Coding ] Access/Start Authorization Control Module (J518), Coding.
