Lock Cylinder Cap

Lock Cylinder Cap

Removing

• Do not turn the screwdriver to pry off the lock cylinder cap.

- Remove the door handle from the door.

- Gently push a small screwdriver - 3 - - arrow a - into the opening in the bottom of the lock cylinder cap - 1 -.






- Remove the lock cylinder cap - 1 - gently from the door - arrow b -.

- Push the cap off the lock cylinder.

Installation

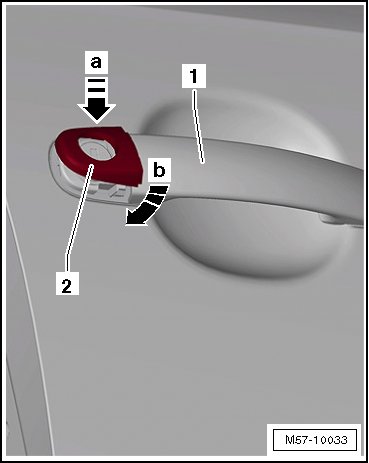

- Remove the door handle - 1 - from the door.






- Place the lock cylinder cap - 2 - gently at an angle from above - arrow a - on the lock cylinder.

- Press the lock cylinder cap - 2 - on to door - arrow b - until cover cap engages with lock cylinder.
