Wheel Housing Trim, Vehicles without Side Airbag

Wheel Housing Trim, Vehicles without Side Airbag

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

- Remove the rear bench seat => [ Bench Seat ] Bench Seat.

- Fold the backrest forward.

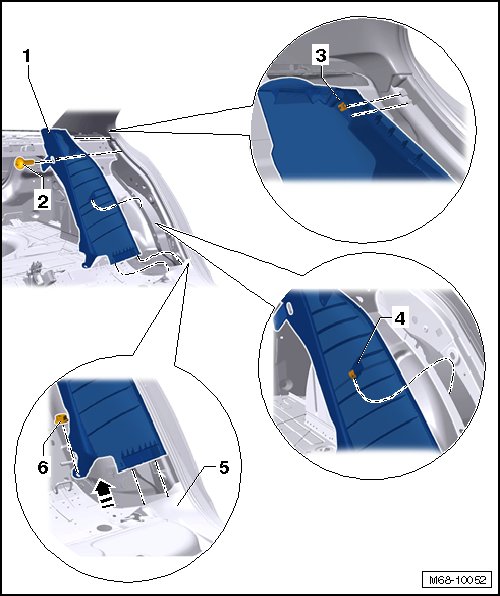

- Remove the nut - 6 - (8 Nm).

- Open the cap and remove the screw - 2 - (2.5 Nm).

- Loosen the wheel housing trim - 1 - from the C-pillar - 3 -.

- Loosen the clip - 4 - off the body flange.

- Remove the wheel housing trim - 1 - from the retainers in the sill panel strip - 5 - in - direction of arrow -.






Installation

Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
