Upper A-Pillar Trim

Upper A-Pillar Trim

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

- Remove the instrument panel cover on each side. Refer to => [ Side Instrument Panel Covers ] Side Instrument Panel Covers.

- Remove the A-pillar center trim. Refer to => [ Center A-Pillar Trim ] Center A-Pillar Trim.

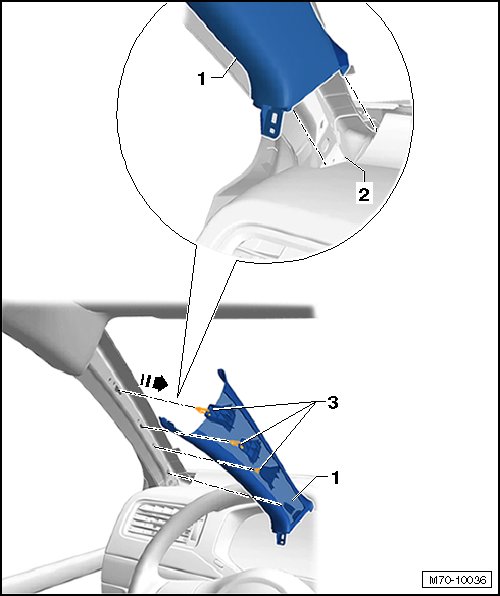

- Loosen the trim - 1 - from the door seal molding.

- Remove the trim - 1 - near the clips - 3 - from the retainers - arrow -.

- Remove the trim - 1 - from the instrument panel - 2 -.






Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.

• Make sure the trim panel is installed inside the door seal.
