Glove Compartment Lock Cylinder: Service and Repair

Glove Compartment Lock Cylinder

Removing

• The lock cylinder - 1 - cannot be removed separately. The release button - 2 - must be replaced.

- Open the glove compartment.

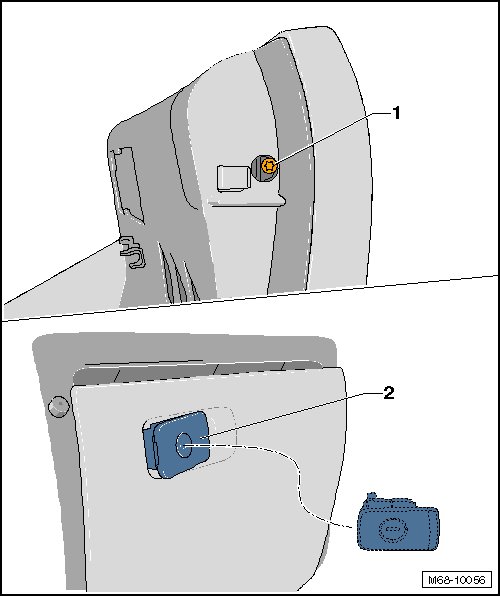

- Remove the bolt - 1 - and the unlock button - 2 - from the glove compartment lid.






Installation

- Install in reverse order of removal.
