Rear Center Console Trim Bracket - Comfort and Highline

Rear Center Console Trim Bracket - Comfort and Highline

Removing

- Remove the trim from the back of the Comfort and Highline center console. Refer to => [ Rear Center Console Trim - Comfort and Highline ] Rear Center Console Trim - Comfort and Highline.

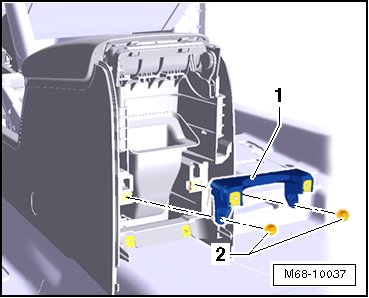

- Remove the 2 bolts - 2 - from the bracket - 1 - (1.5 Nm).

- Remove the bracket - 1 - from the center console.






Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
