Rear Center Console Trim - Comfort and Highline

Rear Center Console Trim - Comfort and Highline

Removing

- Turn off the ignition.

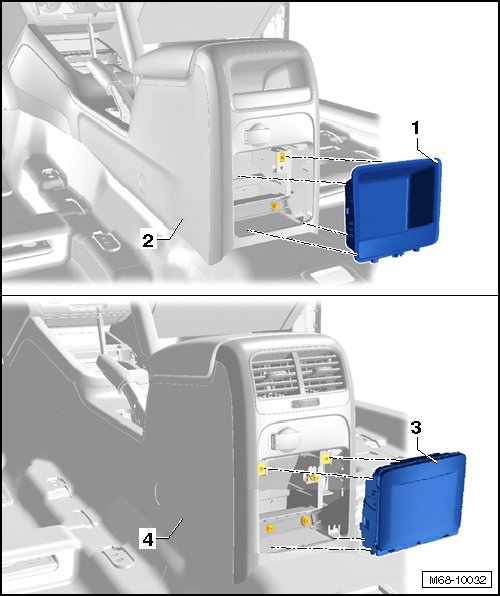

Comfort center console

- Remove the trim - 1 - from the center console - 3 - using trim removal wedge (3409).

Highline center console

- Remove the converter with socket, 12 V-230 V (U13) from the center console - 4 - - 3 - using trim removal wedge (3409).

- Disconnect the wiring harness and remove it.






Comfort center console

- Remove the 2 screws - 2 - from the trim - 1 - (1.5 Nm).

- Remove the trim - 1 - from the center console - 3 - and disconnect the wiring harness for the 12 V socket (U5).

Highline center console

- Remove the 2 screws - 5 - from the trim - 4 - (1.5 Nm).

- Remove the trim - 4 - from the center console - 6 - and disconnect the wiring harness for the 12 V socket (U5).






Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
