Center Console - Comfort and Highline

Center Console - Comfort and Highline

Removing

- Turn off the ignition.

- Move the selector lever into "N".

- Remove the shift cover and handle from the cover.

Vehicles with CD Changer

- Remove the CD changer.

All Vehicles

- Remove the parking brake lever trim.

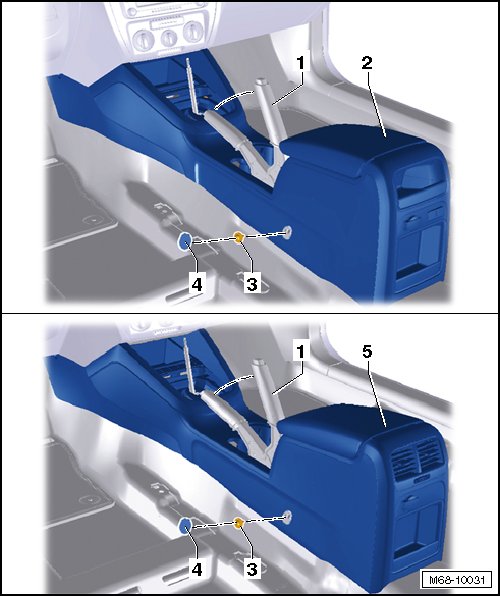

- Remove the caps - 4 - on both side of the center console - 2 - or - 5 - and remove the bolt - 3 - (3.0 Nm).

- Pull the parking brake lever - 1 - into its highest position.






- Remove bolt - 1 - on both sides (1.5 Nm).

- Remove the trim - 2 - on both sides of the center console in - direction of arrow -.

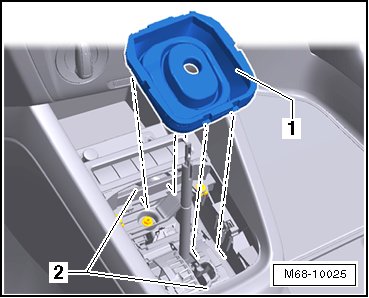

- Remove the noise insulation - 1 - from the center console - 2 -.






- Remove the 2 screws - 3 - (1.5 Nm).

- Remove the storage compartment - 1 - from the center console - 2 - and disconnect the wiring harnesses (depending on the vehicle equipment level).






• An ashtray may be installed instead of the storage compartment - 1 -, removal is the same.

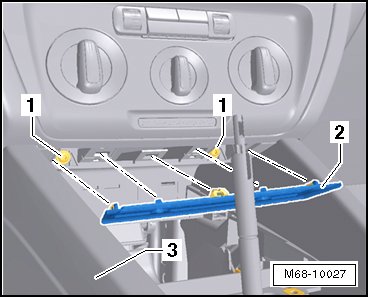

- Remove the trim - 2 - from the center console - 3 - with the trim removal wedge (3409).

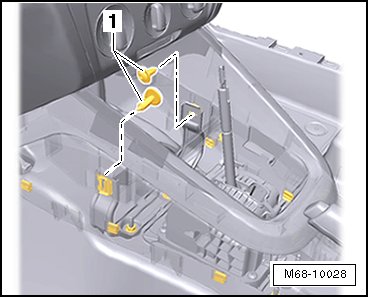

- Remove the 2 screws - 1 - (1.5 Nm).






- Remove the 2 screws - 1 - (1.5 Nm).






Comfort center console

- Open the storage compartment cover - 2 - and remove the trim - 1 - from the center console - 3 -.

- Remove the 2 screws - 7 - (3,0 Nm).

- Remove the trim from the back of the Comfort center console. Refer to => [ Rear Center Console Trim - Comfort and Highline ] Rear Center Console Trim - Comfort and Highline.

Highline center console

- Open the storage compartment cover - 5 - and remove the trim - 4 - from the center console - 6 -.

- Remove the 2 screws - 7 - (3,0 Nm).

- Remove the trim from the back of the Highline center console. Refer to => [ Rear Center Console Trim - Comfort and Highline ] Rear Center Console Trim - Comfort and Highline.

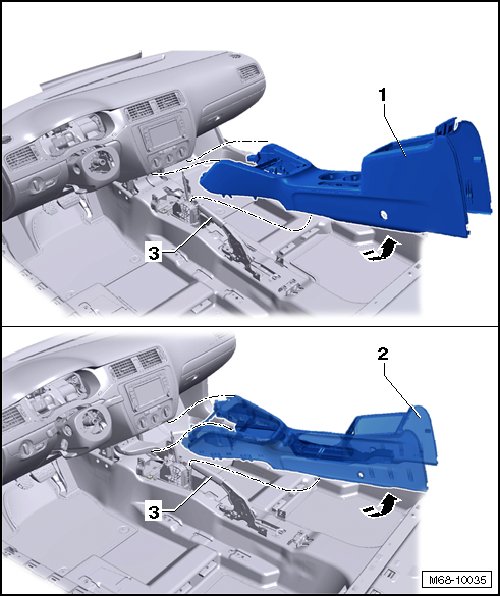

Comfort center console

- Remove the center console - 1 - from the vehicle in - direction of arrow -.

Highline center console

- Remove the center console - 2 - and air guide channel from the vehicle in - direction of arrow -.






• The parking brake lever - 3 - must be pulled up into the highest position.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
