Subframe, Lowering

Subframe, Lowering

Special tools, testers and auxiliary items required

• Torque Wrench 40-200 Nm (V.A.G 1332)

• Engine/transmission jack (V.A.G 1383 A)

Lowering the Subframe with Attachments

- Loosen the wheel bolts.

- Raise the vehicle.

- Remove wheels.

- Remove the brake calipers on both sides of the vehicle and hang on the body.

- Remove coil springs. Refer to => [ Coil Spring ] Coil Spring.

- Remove exhaust system rear muffler.

Vehicles with Left Rear Level Control System Sensor (G76)

- Disconnect the harness connector - 1 -.






Continuation for All Vehicles

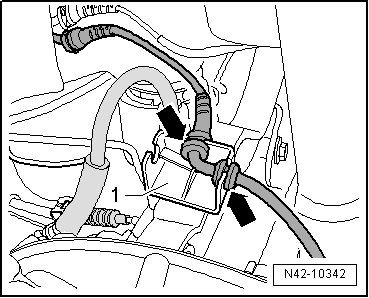

- Unclip the speed sensor wire out of the bracket - 1 - - arrows -.

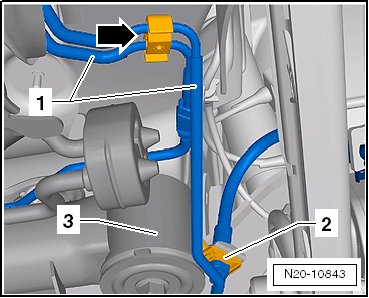

- Unclip the brake lines - 1 - from the bracket - arrow - on the left side of the body.






- Remove the clip - 2 - from the subframe - 3 - and loosen the brake hose from it.

• Do not disconnect the brake line.

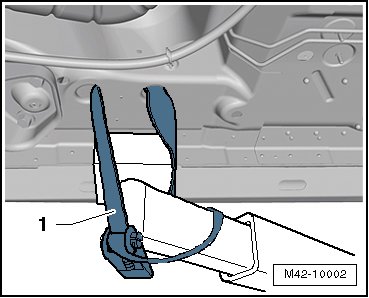

- Secure both sides of the vehicle on the hoist arms using (T10038).






1. (T10038)



The vehicle could slide off the hoist if it is not secured.

- Subframe, locating, refer to => [ Subframe, Securing ] Description and Operation.

- Carefully lower the subframe with its components approximately. 2 cm.

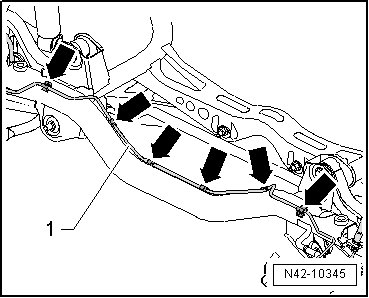

- Remove the brake line - 1 - from the clips - arrows -.






• When doing this, the clips will be destroyed and must be replaced.

- Carefully lower the subframe with its components approximately 140 mm.

Subframe with Components, Installing

Install in reverse order of removal. Observe the following when doing so:

- Install the wheels. For the tightening specification, refer to => [ Wheel Bolt Tightening Specification ] [1][2]Specifications.

Tightening Specifications
