Front License Plate Holder

Front License Plate Holder

• The license plate holder is not installed on all models for all markets.

• The license plate holder can have different sizes depending on the market.

• The contour of the bumper determines the height of the license plate holder.

• Drill 12 mm holes.






Perform the following:

With holes present

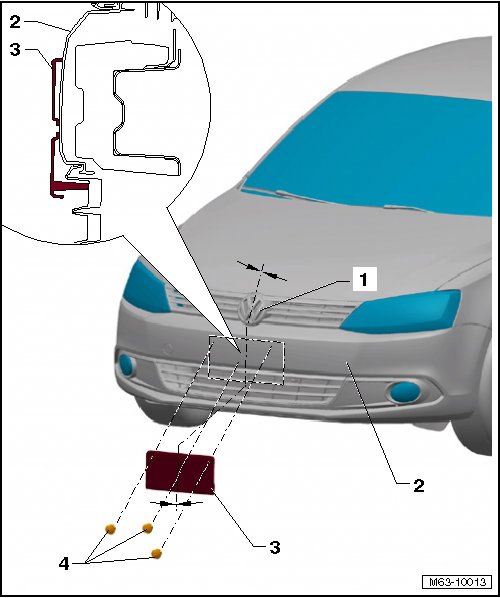

- Position the license plate holder - 3 - on the front bumper cover - 2 - and push the clips - 4 - in.

With no holes present

- Center the license plate holder - 3 - on the front bumper cover - 2 - with the emblem - 1 -.

- Make a 12 mm stop depth mark and drill the holes.

- Position the license plate holder - 3 - on the front bumper cover - 2 - and push the clips - 4 - in.
