Air Grille

Air Grille

Removing

- Remove the plenum chamber cover.

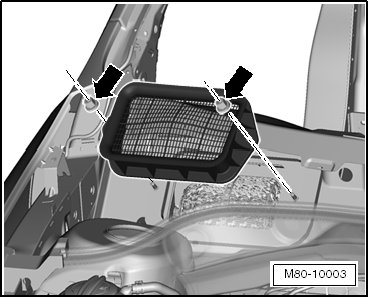

- Remove the nuts - arrows - and the air grille.






Installing

Install in reverse order of removal.

• The seal must fit correctly in the air grille.
