Rear Name Plates

Rear Name Plates

• To install the name plates refer to => [ Name Plates and Emblems, Installing ] Name Plates.

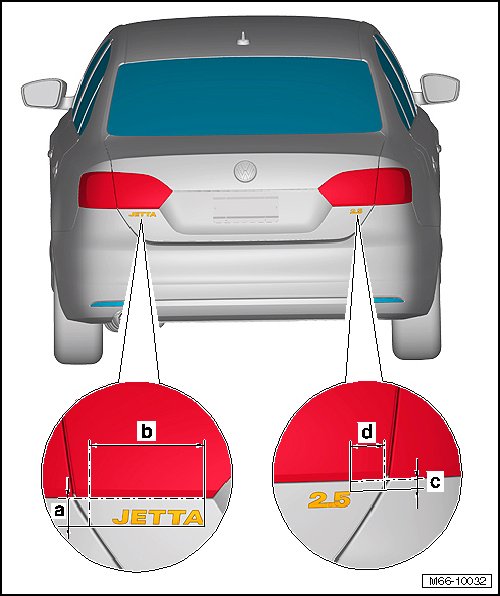

Dimension - a - = 32 mm

From lower edge of the tail lamp assembly to lower edge of name plate.

Dimension - b - = 155 mm

From the edge of the rear lid to the inner edge of the name plate

Dimension - c - = 14 mm

From lower edge of the tail lamp assembly to upper edge of name plate.

Dimension - d - = 43 mm

From the edge of the rear lid to the outer edge of the name plate
