Trunk / Liftgate Interior Trim Panel: Service and Repair

Rear Lid Trim

Removing

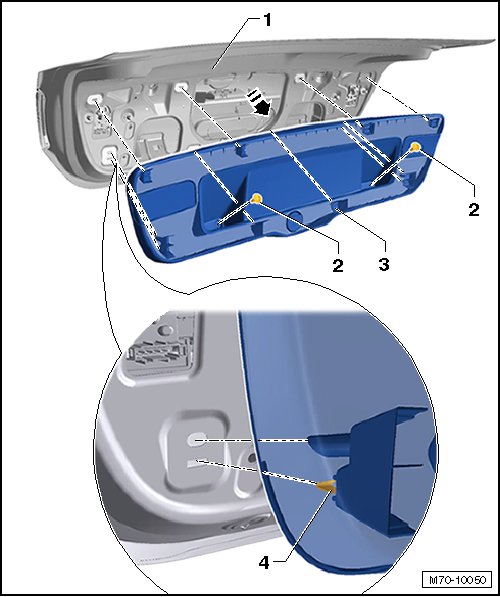

- Remove two screws - 2 - from grip recesses (2 Nm).

- Loosen the clips - 4 - in the trim panel - 3 - from the rear lid using (T10383).

- Remove the trim panel - 3 - from the rear lid in - direction of arrow - - 1 -.






Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
