Rear Lid Hinge Assembly Overview

Rear Lid Hinge Assembly Overview

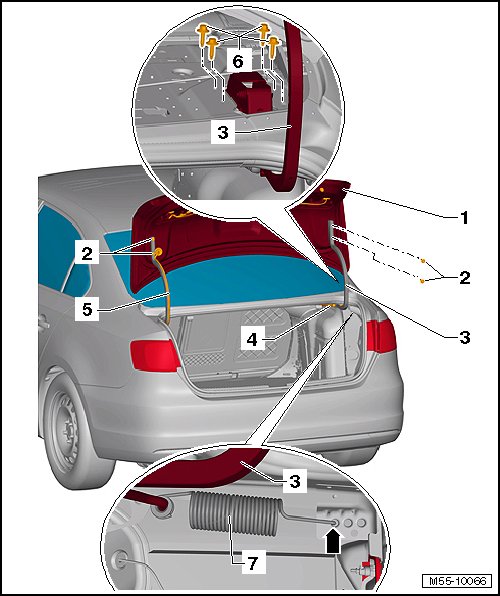

1 Rear lid

• Removing and Installing, refer to => [ Rear Lid ] Rear Lid

• Adjusting, refer to => [ Rear Lid, Adjusting ] Rear Lid, Adjusting

2 Bolt

• 2 for each hinge

• Tightening specification: 9 Nm

3 Hinge

• Removing and Installing, refer to => [ Rear Lid Hinge ] Rear Lid Hinge

4 Gas-filled strut

• Removing and Installing, refer to => [ Gas-Filled Strut ] Gas-Filled Strut

• Releasing the gas, refer to => [ Gas-Filled Strut, Releasing Gas ] Gas-Filled Strut, Releasing Gas

5 Electric wire

• Clipped to the hinge

6 Bolt

• 4 for each hinge

• Tightening specification: 9 Nm

7 Spring

• Left and right

• Engaged in the left hole - arrow -
