Gas-Filled Strut, Releasing Gas

Gas-Filled Strut, Releasing Gas

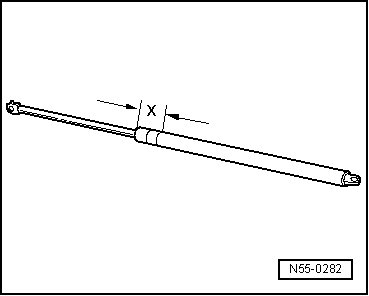

- Clamp area - x - of the gas strut in the vise, area - x - = 50 mm.







Only clamp the gas strut in area - x -. Otherwise, an accident may occur.

- Saw into the cylindrical part of strut in the first third of the total cylinder length, determined starting from the edge of the cover on the side with the piston rod.

• Wear protective eyewear when sawing.

• Cover the area of the sawed portion with a clean cloth.

• Dispose of oil and cloth via existing disposal channels.
