Gas-Filled Strut Assembly Overview

Gas-Filled Strut Assembly Overview

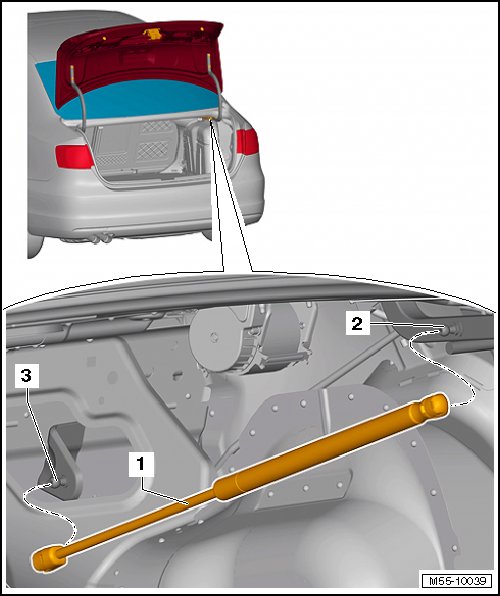

1 Gas-filled strut

• Removing and Installing, refer to => [ Gas-Filled Strut ] Gas-Filled Strut

• Releasing the gas, refer to => [ Gas-Filled Strut, Releasing Gas ] Gas-Filled Strut, Releasing Gas

2 Ball head pin

• Only on the right hinge

• Cannot be removed from the hinge

3 Bracket with ball stud

• On the rear panel

• Cannot be removed from the rear panel
