Hood Release Lever

Hood Release Lever

Removing






Perform the following:

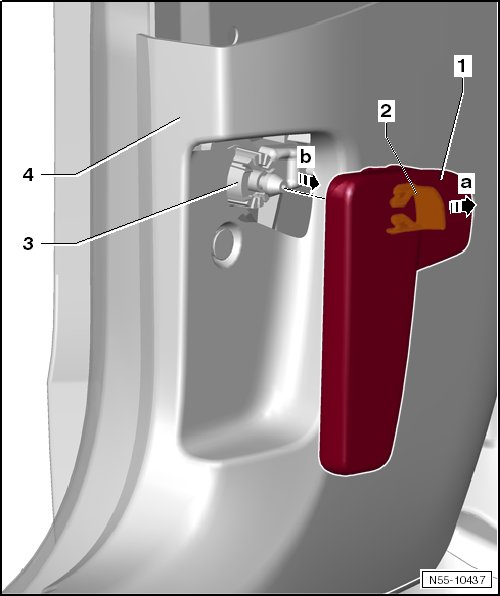

- Pull the hood release lever - 1 - and release the hood.

- Insert a small screwdriver into the gap between the hood release lever - 1 - and the clip - 2 -.

- Pry the clip - 2 - out of the hood release lever - 1 - - arrow a - and then remove the hood release lever from the bracket - 3 - - arrow b -.

It is necessary to remove the lower trim on the A-pillar - 4 - if additional work must be performed on the bracket - 3 -.

Installing






Perform the following:

• The A-pillar lower trim - 4 - is installed.

- Install the clip - 2 - in the hood release lever - 1 -.

- Install the hood release lever - 1 - on the bracket - 3 -.

• Before closing the hood, make sure the hood release lever and the cable are working correctly.
