Hood Insulator / Pad: Service and Repair

Noise Insulation

Removing

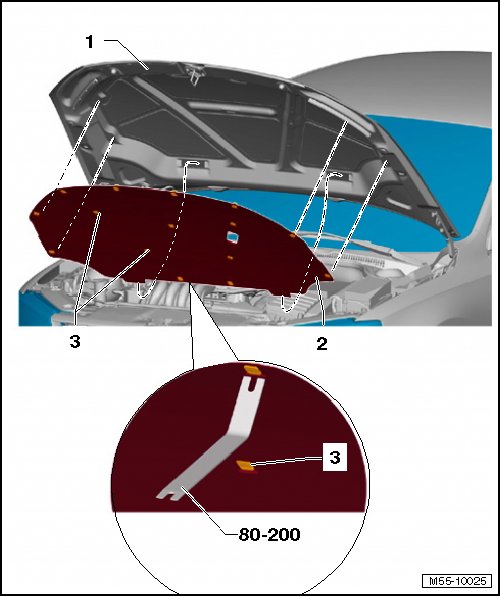

- Support the hood - 1 - and remove the support rod from the hood.

- Pry the retaining clips - 3 - out of the hood - 1 - with the pry lever (80 - 200).

- Remove the noise insulation - 2 - from the oblong holes in the hood - 1 -.

Installing






• When installing the noise insulation - 2 -, be sure to install the retaining clips - 3 - with the wide side facing out.

- Install the noise insulation- 2 - into the oblong holes in the hood - 1 -.

- Lock all the clips - 3 - into the hood - 1 -.
