Hood Catch, Adjusting

Hood Catch, Adjusting

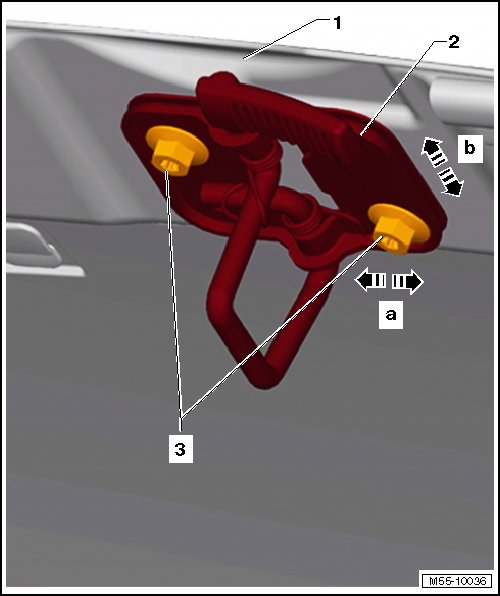

- Loosen the bolts - 3 -.

- Adjust the hood catch - 2 - in the oversized holes.

Bolt - 3 - tightening specification: 10 Nm
