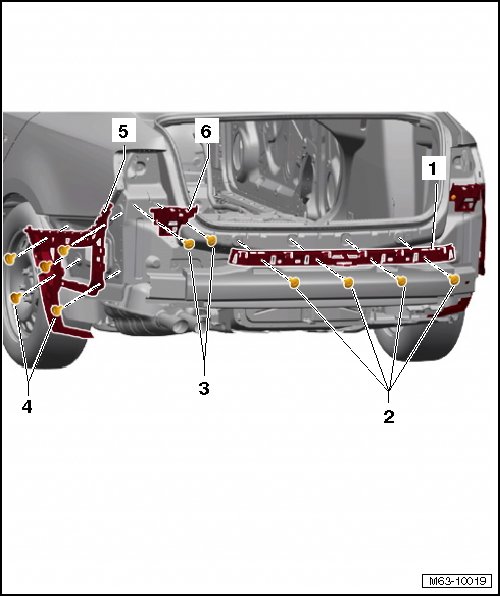

Rear Bumper Cover Guides Assembly Overview

Rear Bumper Cover Guides Assembly Overview






1 Center guide

2 Bolt

• Quantity: 4

• Tightening specification: 4 Nm

3 Bolt

• 2 or 3 on each side (depending on the model)

• Tightening specification: 4 Nm

4 Bolt

• 5 on each side

• Tightening specification: 4 Nm

5 Side guide

• Left and right

6 Angle bracket

• Left and right
