Front Bumper Cover Attachments

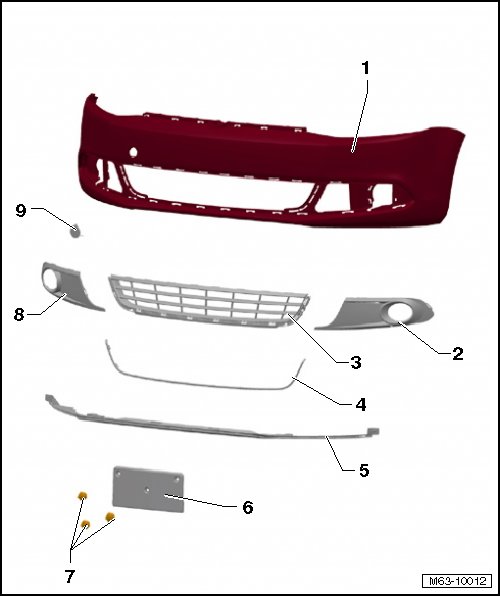

Front Bumper Cover Attachments

• Depending on model version, slight deviations for attachments must be considered.






1 Front bumper cover

• PP/EPDM material

• Removing and Installing, refer to => [ Front Bumper Cover ] Front Bumper Cover

2 Left trim cover

• Pull forward out of the catch.

• There are different versions. For the correct allocation, refer to the Parts Catalog.

3 Center vent grille

• Remove only when bumper cover - 1 - has been removed

• There are different versions. For the correct allocation, refer to the Parts Catalog.

4 Decorative trim strip

Center air grille depending on the model - 3 -

5 Spoiler

• Remove only when bumper cover - 1 - has been removed

6 License plate holder

• Not installed on all models for all markets.

• There are different versions. For the correct allocation, refer to the Parts Catalog.

7 Clip

• For attaching the license plate holder - 6 -

8 Right trim cover

• Pull forward out of the catch.

• There are different versions. For the correct allocation, refer to the Parts Catalog.

9 Cover

• For the towing eye
