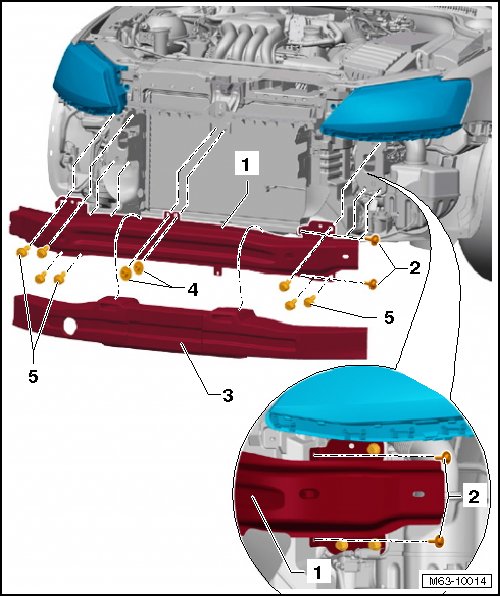

Front Bumper Carrier Assembly Overview

Front Bumper Carrier Assembly Overview






1 Front bumper carrier

2 Bolt

• 2 on each side

• Tightening specification: 8 Nm

3 Foam piece

• Self-adhesive

• Not installed in all models

4 Nut

• Quantity: 2

• Tightening specification: 8 Nm

5 Bolt

• Quantity: 3, on the left side

• Quantity: 4, on the right side

• Tightening specification: 60 Nm
