Treble, Front In A-Pillars

Treble, Front In A-Pillars

The Right front treble speaker (R22) / Left front treble speaker (R20) are located inside the A-pillars.

Removal and installation of left or right side speakers is identical.

The right front treble speaker / left front treble speaker are part of the A-pillar trim and cannot be replaced separately. The A-pillar trim must be replaced if the speaker is faulty.

• Be sure to note the color code for the trim when ordering a replacement part.

Removing


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Remove the A-pillar upper trim.

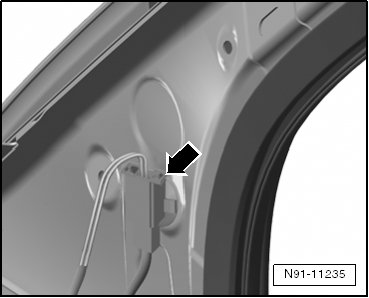

- Disconnect the connector - arrow - on the A-pillar.






Installing

Install in reverse order of removal.

• Be sure to note the color code for the trim when ordering a replacement part.
