Speaker System With Subwoofer

Speaker System With Subwoofer

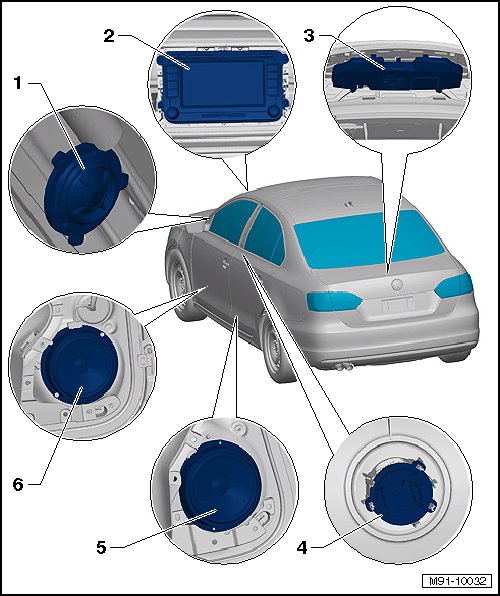

• The illustration shows the speakers on the left side.

• The right speakers are identical.






1 Right Front Treble Speaker (R22) / Left Front Treble Speaker (R20) Inside The A-Pillars

• Removing and installing, refer to => [ Treble, Front In Mirror Triangle ] Treble, Front In Mirror Triangle or => [ Treble, Front In A-Pillars ] Treble, Front In A-Pillars.

2 Radio (R)

3 Subwoofer In The Rear Shelf (R157)

• Bolts: 4 Nm

• Removing and installing, refer to => [ Subwoofer In Rear Shelf (R157) ] Subwoofer In Rear Shelf (R157).

4 Right Rear Treble Speaker (R16) / Left Rear Treble Speaker (R14) Inside The Rear Doors

• Removing and installing, refer to => [ Treble Speaker, Rear ] Treble Speaker, Rear.

5 Right Rear Bass Speaker (R17) / Left Rear Bass Speaker (R15) Inside The Rear Doors

• Removing and installing, refer to => [ Bass, Rear ] Bass, Rear.

6 Right Front Bass Speaker (R23) / Left Front Bass Speaker (R21) Inside The Front Doors

• Removing and installing, refer to => [ Bass, Front ] Bass, Front.
