Entry Radio Overview

Component Locations: Radio / Navigation Systems

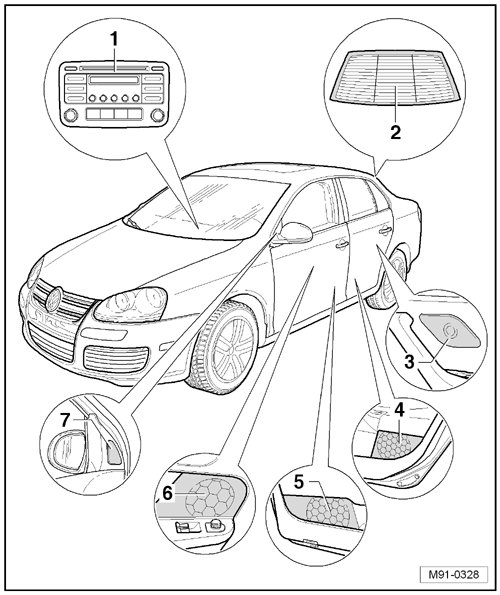

Entry Radio Overview







1 Radio -R-
2 Antenna -R11-
3 Left rear treble speaker -R14- / Right rear treble speaker -R16-
• Inside the trim panels in the left and right rear doors
4 Left rear bass speaker -R15- / Right rear bass speaker -R17-
• Inside the trim panels in the left and right rear doors
5 Left front bass speaker -R21- / Right front bass speaker -R23-
• Inside the left and right trim panels on the front doors
6 Left front midrange speaker -R103- / Right front midrange speaker -R104-
• Inside the left and right trim panels on the front doors
7 Left front treble speaker -R20- / Right front treble speaker -R22-
• Inside the triangular mirror cover on left and right front doors
