iPod Baseplate (R192) Adapter

iPod Baseplate (R192) Adapter

In order to adapt the baseplate for different iPod sizes, there is an adapter for the iPod baseplate (R192).

Installing

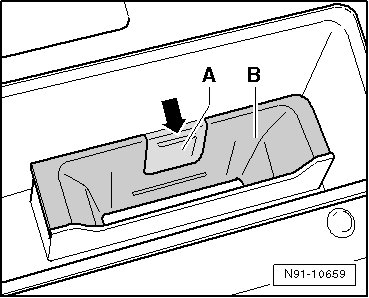

iPod and iPod Photo:

- Push the adapter - A - in - direction of arrow - all the way into the adapter - B -.






• The adapter - A - is available in various thicknesses. To find out which one is needed the Operating Instructions.

iPod Mini:

- Push the adapter in - direction of arrow - all the way into the mount in the iPod baseplate (R192).






Removing

Remove in reverse order of installation.
