USB Connection Baseplate (R193)

USB Connection Baseplate (R193)

Special tools, testers and auxiliary items required

• Radio Removal Tool (3316)

The USB connection baseplate is located inside the center armrest.

Removing


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Open the center armrest.

- Remove any data storage devices and their wire connections.

- Insert the (3316) into the slots - arrows - on the USB connection baseplate.






The USB connection baseplate is illustrated as removed for purposes of clarity.

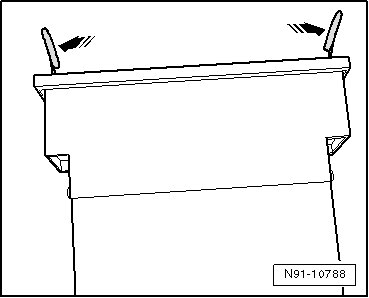

- Press the (3316) apart in - direction of arrow -. Remove the USB connection baseplate from the center armrest using (3316).






- Disconnect the connector from the USB connection baseplate.

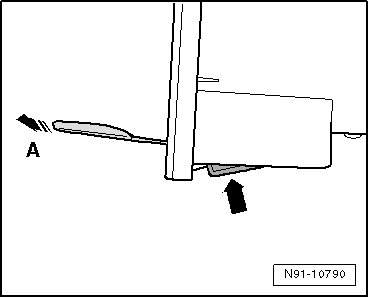

- Press the spring on the USB connection baseplate in - direction of arrow - and, at the same time, remove the (3316) in - direction of arrow A -.






Installing

- Insert the USB connection baseplate into the center armrest. The USB connection must in the back.

Install in reverse order of removal.
