External Audio Source Connection 2 (R231) USB Port

External Audio Source Connection 2 (R231) USB Port

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Carefully pry the selector lever boot out of the center console - arrows -.






- Remove the bolts - arrows -.






- Remove the center console storage compartment.

- Disconnect the connectors - arrows -.

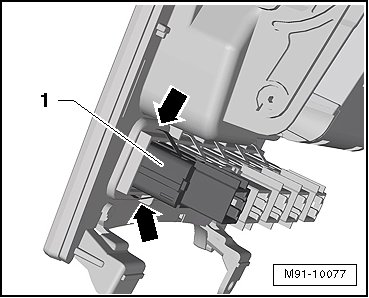

- Squeeze the clips - arrows - on the USB port - 1 - using (3409) and remove the USB port - 1 -.






Installation

Install in reverse order of removal.

Torque specifications: 1.5 Nm
