USB Connection Baseplate (R193) Connector
USB Connection Baseplate (R193) Connector

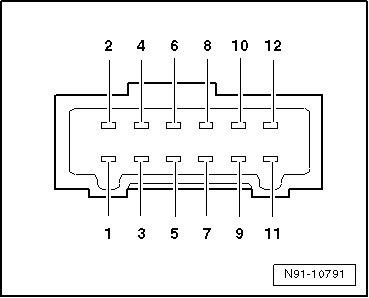

12-pin Connector
1. DATA IN
2. CLOCK
3. Terminal 31
4. DATA OUT
5. Not used
6. Terminal 30
7. Right audio
8. Control signal from the radio
9. Audio ground
10. Left audio
11. Not used
12. Not used
