Parking Aid Control Module (J446)

Parking Aid Control Module (J446)

The parking aid control module is located under the instrument panel on the driver side above the relay panel.


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the left instrument panel cover on the driver side.

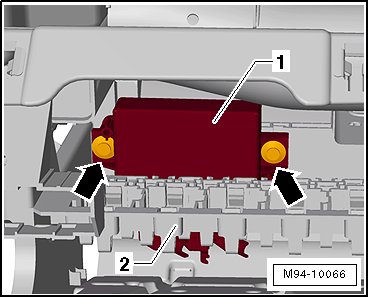

- Remove the expanding rivets - arrows - on the parking aid control module - 1 -.






- Remove the parking aid control module - 1 - out toward the rear and down out of the bracket - 2 -.

- Disconnect the connectors.

Installing

Install in reverse order of removal.
