Cellular Telephone Preparation Control Head (E508)

Cellular Telephone Preparation Control Head (E508)

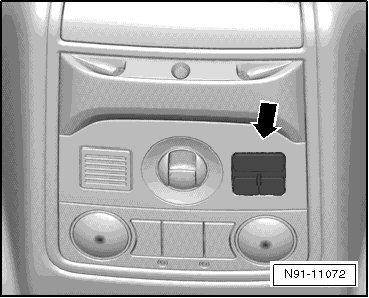

Installed location of cellular telephone preparation control head - arrow -





Removing


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Remove the Front Interior Lamp (W1).

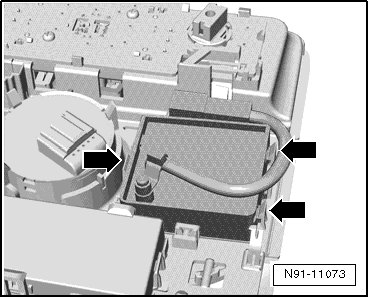

- Open the three hooks - arrows - and remove the cell phone preparation control head.






- Disconnect the connector from the cellular telephone preparation control head.

Installing

Install in reverse order of removal.
