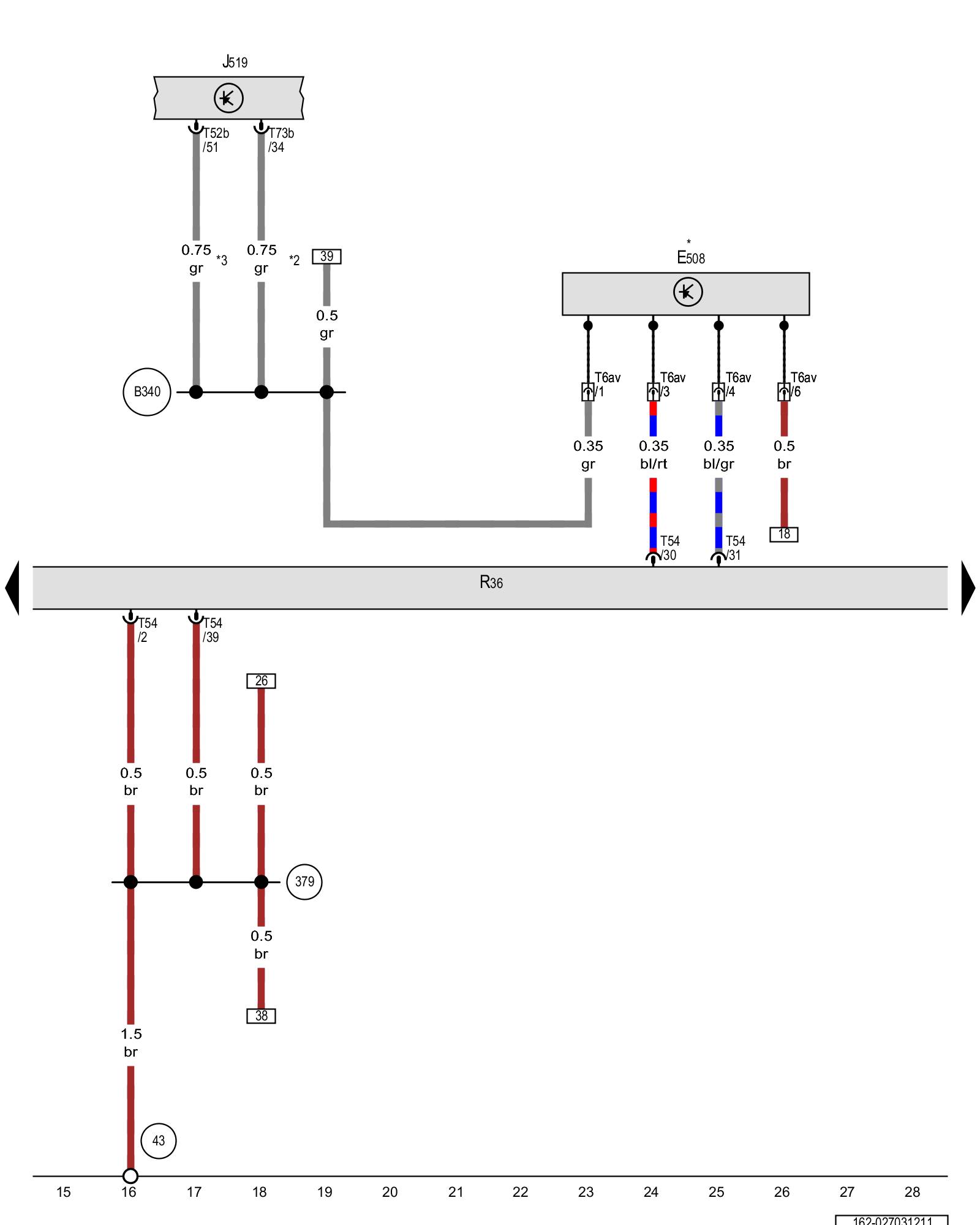

Diagram 27/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Cellular telephone preparation control head, Vehicle electrical system control module, Telephone transceiver





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E508 - Cellular telephone preparation control head Telephone System Installed Locations

J519 - Vehicle electrical system control module Overview Of Control Modules

R36 - Telephone transceiver Overview Of Control Modules Telephone System Installed Locations

T6av - 6-pin connector

T52b - 52-pin connector Overview Of Control Modules

T54 - 54-pin connector

T73b - 73-pin connector Overview Of Control Modules

(43) - Ground connection on A-pillar, lower right Locations

(379) - Ground connection 14 (in main wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

* - Component not contained in cell phone prep

*2 - only for vehicles with Low equipment (AW0)

*3 - only for vehicles with High equipment (AW1)
