Telephone Transceiver (R36), through 06.06

Telephone Transceiver (R36), through 06.06

The telephone transceiver is installed under front right seat.

Removing


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Remove the cell phone (R54) from the telephone baseplate (R126).

- Remove the right front seat.

- Pull up the carpet near the connector station. The telephone transceiver will be underneath it.

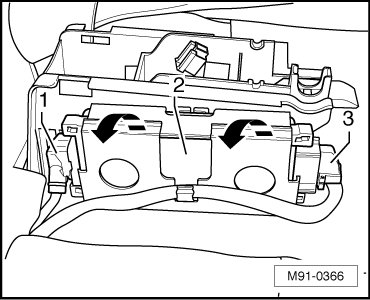

- Unclip both retainers - arrows - and move the flap downward.






- Remove the telephone transceiver - 2 - with the wires still connected.

- Disconnect the connectors - 1 - and - 3 -.

Installing

Install in reverse order of removal.
