Antenna, Navigation: Locations

Navigation System Antenna (R50)

Removing


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Remove the roof end strip.

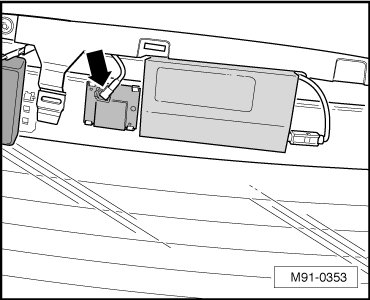

- Disconnect the connector - arrow - from the navigation system antenna.

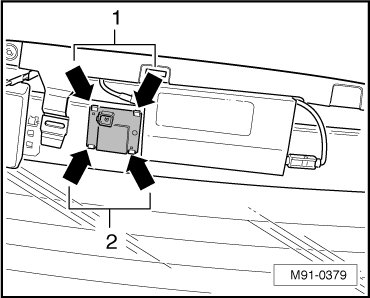

- Loosen the front clips - arrows 1 -.






- Move the navigation system antenna downward and remove it from the lower clips - arrows 2 -.

Installing

Install in reverse order of removal.
