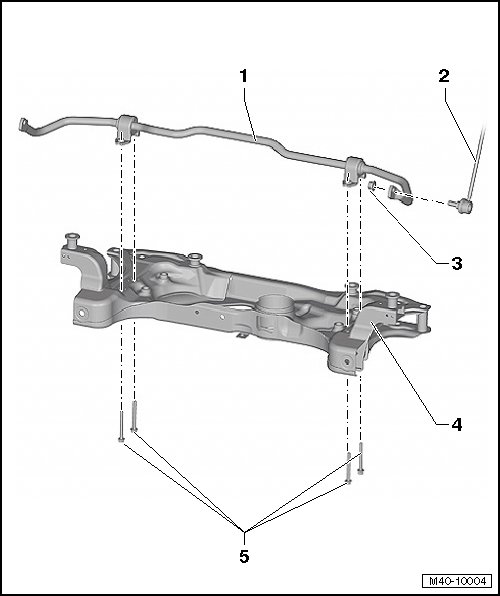

Stabilizer Bar Overview

Stabilizer Bar Overview






1 Stabilizer Bar

• Various versions. Allocation, refer to the Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ Stabilizer Bar ] Stabilizer Bar.

2 Coupling Rod

• Linking stabilizer to suspension strut.

3 Nut

• 65 Nm

4 Subframe

5 Bolt

• 20 Nm + 90° turn

• Always replace if removed.
